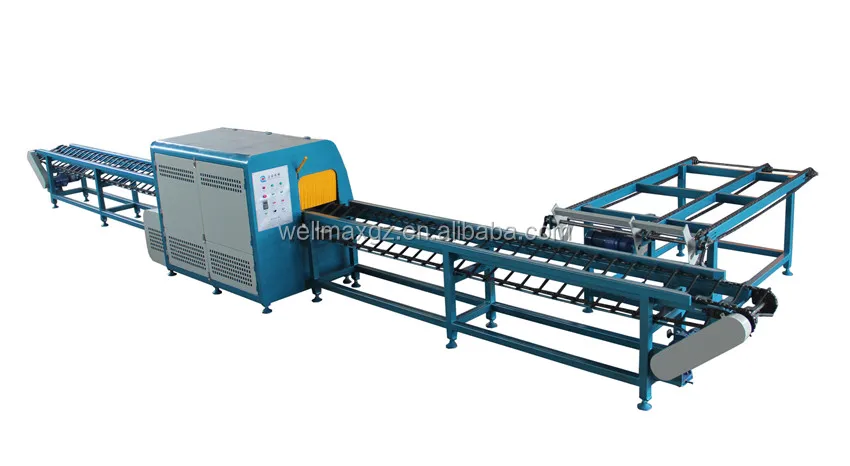

Automatic Multiple Rip Saw Machine ZQ400N

Multi rip saw machine applications:

Our multi rip saw machine are widely used for round log cutting,its cut different diameter round logs.

Multi rip saw technical parameters:

Multi rip saw machine main features:

FULL AUTOMATIC

1.High precision:Special designed five spindle structure for round log cutting,control error in 0.2-0.5mm.

2.High efficient:Cutting diameter from 30-500mm(different machine model),oen cycle can cutter 5-7 pieces timber,output capacity from 1.5-9m³ per hour.

3.Save material cost:Adtop five spindle structure and up-down saw spindle to make sure the error in 0.2-0.5mm,the final timber with smooth surface and no need planer again.

4.Durable:Special design with excellent coolling system to ensure saw blade use life time,high strength machine body frame.

5.Easy to operate:Very simple to change saw blade and can change cutting timber size freely,no need well trained workers.

Multiple rip saw machine introduction:

1.Main shaft: Use high-quality materials, modulation, high-precision cylindrical grinding, dynamic balance processing, high stability, wear-resistant and durable anti-rust.
2.Cooling system: Axial water spray technology, dust-proof and environmental protection, protects the saw blade, can ensure the continuous operation of the saw blade and prolong the life of the saw blade.
3.Feeding: It adopts four rows of sharp tooth chains to convey. The machine is equipped with advanced frequency conversion intelligent governor, which can implement free speed adjustment for the feeding speed of large and small wood. Logs can be automatically divided into groups. Limit switches are also provided on the machine to prevent the entry of oversized wood and prevent the wood from being damaged.
4.Body frame: Integrated design of the main box, one-time CNC machining, further equipment stability, greatly improve the service life of the saw blade. At the same time, the main cabinet is treated with aging, durable and not deformed.
5.Bearings: Bearings imported from Germany are chosen for their high stability and durability. This ensures that the spindle can be operated flexibly and without faults, helping to extend the service life of the saw blade.
Saw blade: Germany imported high-quality steel plate as the bottom saw blade, heat-resistant, wear-resistant, not easily deformed.

Multi rip saw machine details pcitures:

1.Five-axis designed, reduces blade pressure, protects blade and increases blade life.
2.Integral spindle box to ensures five-axis vertical and parallel.
3.Scientific and safety design device to prevent workpiece jump.
4.The navigation chip is constructed to make the material flow more smoothly.
